产品中心 > 频谱分析仪 > 频谱分析仪 > 实时频谱分析仪RSA7100A

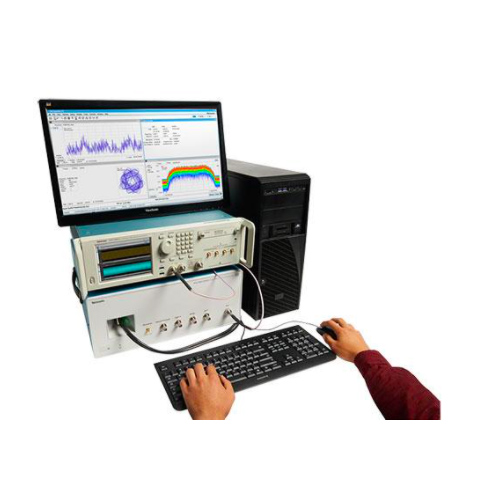

  • 实时频谱分析仪RSA7100A

  • 产品编号：14069
  • 产品名称：实时频谱分析仪
  • 产品型号：RSA7100A
  • 订货编号：
  • 市 场 价：¥1931630.00
  • 促 销 价：
  • 状    态：
  • 产    地：美国泰克
  • 简要参数：
    实时频谱分析仪，频率16kHz～14/26.5GHz，实时带宽320/800MHz，100% POI的最短事件时长700ns，SFDR（典型值）65dBc。
  • 人    气：871

相关推送

浏览记录

产品介绍

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

  • Frequency reference

    • Frequency

    • 10 MHz

    • Initial accuracy at Cal (10 min warm-up)

    • ± 50 x 10  -9 (23 °C to 28 °C)

    • Aging after 30 days of continuous operation, typical

    • ± 0.5 x 10 -9per day

      ± 100 x 10 -9first year

    • Cumulative error (Initial + Temperature + Aging), typical

    • 200 x 10 -9(1 year)

    • Temperature drift

    • 10 x 10  -9 (23 °C to 28 °C)

      50 x 10 -9(0 °C to 55 °C)

    • External reference output

    • BNC connector, 50 Ω, nominal

    • External reference output level

    • 0.71 Vpp to 2 Vpp into 50 Ω

    • External reference output level, typical

    • 1.2 Vpp into 50 Ω

    • External reference input

    • BNC connector, 50 Ω, nominal

    • External reference input frequency

    • 10 MHz ±0.2 x 10-6

    • External reference input level

    • 0.5 Vpp to 2 Vpp into 50 Ω

  • Sweep time

    • Full-span sweep time, typical mean

    • (RBW: Auto, Span = 26.5 GHz)

      Preselector Auto: 14.75 sec

      Preselector Off: 1.93 sec

  • Channel response (amplitude and phase deviation), typical

  • For these specifications, set Preselector as Off, Attenuator to 10 dB, 18 °C to 28 °C.

    • Channel response, typical

    • CharacteristicDescription
      Measurement center frequencySpan (MHz)Amplitude flatness (dBrms)Amplitude flatness (dB)Phase linearity (degrees rms)Phase linearity (degrees)
      10 MHz to 3.6 GHz (CF ≥ Span)10 0.06 ±0.8 0.08 ±0.1
      25 0.15 ±0.2 0.4 ±0.5
      50 0.2 ±0.3 1.0 ±1.3
      100 0.4 ±0.6 2.5 ±3.5
      320 1.0 ±1.4 10 ±13
      3.6 GHz to 26.5 GHz10 0.07 ±0.1 0.08 ±0.1
      25 0.1 ±0.12 0.3 ±0.5
      50 0.1 ±0.15 0.8 ±1.1
      100 0.17 ±0.24 1.2 ±1.8
      320 0.6 ±0.86 5 ±8
      800 0.9 ±1.27 11 ±16






  • Noise and distortion

    • 3rd Order IM intercept (TOI)

    • +24 dBm at 3.3 GHz, Preamp OFF

      (2-tone signal level -20 dBm per tone at the RF input. 1 MHz tone separation. Attenuator = 0 dB, Ref Level = -10 dBm. 5 MHz span, RBW set so noise is 10 dB below the IM3 tone level or lower. Production tested in a verification mode not part of normal operation.)

    • 3rd Order IM intercept (TOI), typical

    • -12 dBm (10 MHz to 3.6 GHz, Preamp ON)

      +19 dBm (10 MHz to 100 MHz, Preamp OFF)

      +24 dBm (100 MHz to 3.6 GHz, Preamp OFF)

      +20 dBm (3.6 GHz to 7 GHz)

      +27 dBm (7.5 GHz to 14 GHz)

      +21 dBm (14 GHz to 26.5 GHz)

      (2-tone signal level -20 dBm per tone at the RF input. 1 MHz tone separation. Attenuator = 0 dB, Ref Level = -10 dBm. 5 MHz span, RBW set so noise is 10 dB below the IM3 tone level or lower.)

    • 3rd Order Intermod Distortion (Preamp OFF, Preselector bypassed, 320 MHz acquisition bandwidth), typical

    • -85 dBc (100 MHz to 3.4 GHz)

      -65 dBc (3.4 GHz to 6 GHz)

      -80 dBc (6 GHz to 26.5 GHz)

      (2-tone signal level -20 dBm per tone at the RF input. 50 MHz tone separation. Attenuator = 0 dB, Ref Level = -10 dBm)

    • 2nd Harmonic Intercept (Preselector Enabled, Preamp OFF), typical

    • +40 dBm (50 MHz to 300 MHz input signal)

      +74 dBm (300 MHz to 1.8 GHz input signal)

      +68 dBm (1.8 GHz to 13.25 GHz input signal)

      (0 dBm CW at the RF input. Attenuator = 10 dB, Ref Level = 0 dBm. Span 50 ≤ MHz.)

    • Displayed Average Noise Level (DANL) (Preamp OFF, Preselector bypassed, 18 ◦C to 28 ◦C)

    • -153 dBm/Hz (>10 MHz to 1.7 GHz)

      -150 dBm/Hz (>1.7 GHz to 2.8 GHz)

      -148 dBm/Hz (>2.8 GHz to 3.6 GHz)

      -152 dBm/Hz (>3.6 GHz to 14 GHz)

      -145 dBm/Hz (>14 GHz to 17 GHz)

      -150 dBm/Hz (>17 GHz to 24 GHz)

      -146 dBm/Hz (>24 GHz to 26.5 GHz)

      (Normalized to 1 Hz RBW, with log-average detector, 0 dB attenuation, ref level -50 dBm.)

    • Displayed Average Noise Level (DANL) (Preamp OFF, Preselector bypassed), typical

    • -153 dBm/Hz (200 kHz to 10 MHz)

      -155 dBm/Hz (10 MHz to 100 MHz)

      -156 dBm/Hz (100 MHz to 1.7 GHz)

      -154 dBm/Hz (1.7 GHz to 2.8 GHz)

      -151 dBm/Hz (2.8 GHz to 3.6 GHz)

      -156 dBm/Hz (3.6 GHz to 14 GHz)

      -152 dBm/Hz (14 GHz to 24 GHz)

      -150 dBm/Hz (24 GHz to 26.5 GHz)

      (Normalized to 1 Hz RBW, with log-average detector, 0 dB attenuation.)

    • Displayed Average Noise Level (DANL) (Preamp ON, 18 ◦C to 28 ◦C)

    • -163 dBm/Hz (10 MHz to 50 MHz)

      -164 dBm/Hz (50 MHz to 1.7 GHz)

      -162 dBm/Hz (>1.7 GHz to 3.6 GHz)

      (Normalized to 1 Hz RBW, with log-average detector, 0 dB attenuation, ref level -50 dBm.)

    • Displayed Average Noise Level (DANL) (Preamp ON), typical

    • -168 dBm/Hz (10 MHz to 100 MHz)

      -167 dBm/Hz (100 MHz to 1.7 GHz)

      -165 dBm/Hz (1.7 GHz to 3.6 GHz)

      (Normalized to 1 Hz RBW, with log-average detector, 0 dB attenuation.)

    • Displayed Average Noise Level (DANL) (Preselector enabled), typical

    • -152 dBm/Hz (3.6 GHz to 14 GHz)

      -147 dBm/Hz (14 GHz to 26.5 GHz)

      (Normalized to 1 Hz RBW, with log-average detector, 0 dB attenuation, ref level -50 dBm.)

SignalVu-PC standard measurements

  • Measurements included.

  • General signal analysis
    Spectrum analyzerSpans from 100 Hz to full span of instrument
    Three traces plus math and spectrogram trace
    Five markers with power, relative power, integrated power, power density and dBc/Hz functions
    DPX Spectrum/SpectrogramReal time display of spectrum with 100% probability of intercept of up to 419 nsec signals in up to 800 MHz span. Swept DPX with DPX Spectrum to perform stepped DPX spectrum measurements over the full frequency range of the instrument.
    Amplitude, frequency, phase vs. time, RF I and Q vs. timeBasic vector analysis functions
    Time Overview/NavigatorEnables easy setting of acquisition and analysis times for deep analysis in multiple domains
    SpectrogramAnalyze and re-analyze your signal with a 2-D or 3-D waterfall display
    Analog modulation analysis
    AM, FM, PM analysisMeasures key AM, FM, PM parameters
    RF measurements
    Spurious measurementUser-defined limit lines and regions provide automatic spectrum violation testing across the entire range of the instrument. Four traces can be saved and recalled; CISPR Quasi-Peak and Average detectors available with option SVQP.
    Spectrum emission maskUser-defined or standards-specific masks
    Occupied BandwidthMeasures 99% power, -xdB down points
    Channel Power and ACLRVariable channel and adjacent/alternate channel parameters
    MCPRSophisticated, flexible multi-channel power measurements
    CCDFComplementary Cumulative Distribution Function plots the statistical variations in signal level

  • Measurement functions

  • Measurement functionsDescription
    Frequency domainChannel Power, Multi-Carrier Adjacent Channel Power / Leakage Ratio, Adjacent Channel Power, dBm/Hz Marker, dBc/Hz Marker
    Time domain and statisticalRF I/Q vs. Time, Power vs. Time, Frequency vs. Time, Phase vs. Time, CCDF, Peak-to-Average Ratio
SignalVu-PC applications performance summary

  • General purpose digital modulation analysis (SVMxx-SVPC)

    • Carrier type

    • Continuous, Burst (5 μs minimum on-time)

    • Modulation formats

    • BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, π/2DBPSK, DQPSK, π/4DQPSK, D8PSK, D16PSK, SBPSK, OQPSK, SOQPSK, 16-APSK, 32-APSK, MSK, GFSK, CPM, 2FSK, 4FSK, 8FSK, 16FSK, C4FM

    • Analysis period

    • Up to 164,840 samples

    • Measurement filter

    • Root Raised Cosine, Raised Cosine, Gaussian, Rectangular, IS-95 Base EQ, User, None

    • Reference Filter

    • Gaussian, Raised Cosine, Rectangular, IS-95 baseband, User, None

    • Filter rolloff factor

    • α：0.001 to 1, in 0.001 steps

    • Measurement functions

    • Constellation, Error Vector Magnitude (EVM) vs. Time, Symbol Table

    • Vector diagram display format

    • Symbol/locus display, Frequency Error measurement, Origin Offset measurement

    • Constellation diagram display format

    • Symbol display, Frequency Error measurement, Origin Offset measurement

    • Error vector diagram display format

    • EVM, Magnitude Error, Phase Error, Waveform Quality (ρ) measurement, Frequency Error measurement, Origin Offset measurement

    • Symbol table display format

    • Binary, hexadecimal

    • QPSK Residual EVM (center frequency = 2 GHz), typical mean

    • 0.35 % (100 kHz symbol rate)

      0.35 % (1 MHz symbol rate)

      0.35 % (10 MHz symbol rate)

      0.75 % (30 MHz symbol rate)

      0.75 % (60 MHz symbol rate)

      1.5 % (120 MHz symbol rate)

      2.0 % (240 MHz symbol rate)

      400 symbols measurement length, 20 Averages, normalization reference = maximum symbol magnitude

    • 256 QAM Residual EVM (center frequency = 2 GHz), typical mean

    • 0.4 % (10 MHz symbol rate)

      0.6 % (30 MHz symbol rate)

      0.6 % (60 MHz symbol rate)

      1.0 % (120 MHz symbol rate)

      1.5 % (240 MHz symbol rate)

      400 symbols measurement length, 20 Averages, normalization reference = maximum symbol magnitude

    • OQPSK Residual EVM (center frequency = 2 GHz), typical mean

    • 0.6% (100 kHz symbol rate, 200 kHz measurement bandwidth)

      0.6% (1 MHz symbol rate, 2 MHz measurement bandwidth)

      1.0% (10 MHz symbol rate, 20 MHz measurement bandwidth)

      Reference filter: raised-cosine, Measurement filter: root raised cosine, Filter parameter: Alpha = 0.3

    • SOQPSK (MIL) Residual EVM (center frequency = 250 MHz), typical mean

    • 0.4% (4 kHz symbol rate, 64 kHz measurement bandwidth)

      Reference filter: MIL STD, Measurement filter: none

    • SOQPSK (MIL) Residual EVM (center frequency = 2 GHz), typical mean

    • 0.5% (20 kHz symbol rate, 320 kHz measurement bandwidth)

      0.5% (100 kHz symbol rate, 1.6 MHz measurement bandwidth)

      0.5% (1 MHz symbol rate, 16 MHz measurement bandwidth)

      Reference filter: MIL STD, Measurement filter: none

    • SOQPSK (ARTM) Residual EVM (center frequency = 250 MHz), typical mean

    • 0.3% (4 kHz symbol rate, 64 kHz measurement bandwidth)

      Reference filter: ARTM STD, Measurement filter: none

    • SOQPSK (ARTM) Residual EVM (center frequency = 2 GHz), typical mean

    • 0.5% (20 kHz symbol rate, 320 kHz measurement bandwidth)

      0.5% (100 kHz symbol rate, 1.6 MHz measurement bandwidth)

      0.5% (1 MHz symbol rate, 16 MHz measurement bandwidth)

      Reference filter: ATRM STD, Measurement filter: none

    • SBPSK (MIL) Residual EVM (center frequency = 250 MHz), typical mean

    • 0.3% (4 kHz symbol rate, 64 kHz measurement bandwidth)

      Reference filter: MIL STD, Measurement filter: none

    • SBPSK (MIL) Residual EVM (center frequency = 2 GHz), typical mean

    • 0.5% (20 kHz symbol rate, 320 kHz measurement bandwidth)

      0.5% (100 kHz symbol rate, 1.6 MHz measurement bandwidth)

      0.5% (1 MHz symbol rate, 16 MHz measurement bandwidth)

      Reference filter: MIL STD, Measurement filter: none

    • CPM (MIL) Residual EVM (center frequency = 250 MHz), typical mean

    • 0.3% (4 kHz symbol rate, 64 kHz measurement bandwidth)

      Reference filter: MIL STD, Measurement filter: none

    • CPM (MIL) Residual EVM (center frequency = 2 GHz), typical mean

    • 0.5% (20 kHz symbol rate, 320 kHz measurement bandwidth)

      0.5% (100 kHz symbol rate, 1.6 MHz measurement bandwidth)

      0.5% (1 MHz symbol rate, 16 MHz measurement bandwidth)

      Reference filter: MIL STD, Measurement filter: none

    • 2/4/8/16FSK Residual RMS FSK Error (center frequency = 2 GHz), typical mean

    • 0.5% (2/4FSK, 10 kHz symbol rate, 10 kHz frequency deviation)

      0.4% (8/16FSK, 10 kHz symbol rate, 10 kHz frequency deviation)

      Reference filter: none, Measurement filter: none

  • Flexible OFDM Measurements application (SVOxx-SVPC)

    • 802.11a/g/j/p OFDM and 802.16-2004 maximum residual EVM (RMS), typical mean

    • -52 dB at 2.4 GHz (802.11a/g/j and 802.16-2004)

      -50 dB at 2.4 GHz and 5.8 GHz

    • 802.11b Maximum Residual EVM (RMS), typical mean

    • 1.0% at 2.4 GHz

  • WLAN 802.11n Measurement application (SV24xx-SVPC)

    • OFDM Maximum Residual EVM (RMS), typical mean

    • -49 dB at 2.4 GHz

      -49 dB at 5.8 GHz

      (40 MHz bandwidth)

  • APCO P25 Measurements Application (SV26xx-SVPC)

    • Measurements

    • RF output power, operating frequency accuracy, modulation emission spectrum, unwanted emissions spurious, adjacent channel power ratio, frequency deviation, modulation fidelity, frequency error, eye diagram, symbol table, symbol rate accuracy, transmitter power and encoder attack time, transmitter throughput delay, frequency deviation vs. time, power vs. time, transient frequency behavior, HCPM transmitter logical channel peak adjacent channel power ratio, HCPM transmitter logical channel off slot power, HCPM transmitter logical channel power envelope, HCPM transmitter logical channel time alignment, cross-correlated markers

    • Modulation fidelity, typical mean

    • C4FM = ≤ 1.0%

      HCMP = ≤ 0.5%

      HDQPSK = ≤ 0.25%

      Input signal level is optimized for best modulation fidelity.

  • Bluetooth Measurements Application (SV27xx-SVPC and SV31xx-SVPC)

    • Supported standards

    • Bluetooth® 4.2 Basic Rate, Bluetooth® 4.2 Low Energy, Bluetooth® 4.2 Enhanced Data Rate. Bluetooth® 5 when SV31 is enabled.

    • Measurements

    • Peak Power, Average Power, Adjacent Channel Power or InBand Emission mask, -20 dB Bandwidth, Frequency Error, Modulation Characteristics including ΔF1avg (11110000), ΔF2avg (10101010), ΔF2 > 115 kHz, ΔF2/ΔF1 ratio, frequency deviation vs. time with packet and octet level measurement information, Carrier Frequency f0, Frequency Offset (Preamble and Payload), Max Frequency Offset, Frequency Drift f1-f0, Max Drift Rate fn-f0 and fn-fn-5, Center Frequency Offset Table and Frequency Drift table, color-coded Symbol table, Packet header decoding information, eye diagram, constellation diagram

    • Output power (BR and LE), typical mean

    • Supported measurements: Average power, peak power

      Level uncertainty: refer to instrument amplitude and flatness specification

      Measurement range: signal level > –70 dBm

    • Modulation characteristics, typical mean (CF = 2400 MHz to 2500 MHz)

    • Supported measurements: ΔF1avg, ΔF2avg, ΔF2avg/ ΔF1avg, ΔF2max%>=115kHz (basic rate), ΔF2max%>=115kHz (low energy)

      Deviation range: ±280 kHz

      Deviation uncertainty (at 0 dBm):

      <2 kHz1+ instrument frequency uncertainty (basic rate)

      <3 kHz + instrument frequency uncertainty (low energy)

      Measurement resolution: 10 Hz

      Measurement range: Nominal channel frequency ±100 kHz

      RF signal power range: > –70 dBm

    • Initial Carrier Frequency Tolerance (ICFT) (BR and LE), typical mean

    • Measurement uncertainty (at 0 dBm): <1 kHz2+ instrument frequency uncertainty

      Measurement resolution: 10 Hz

      Measurement range: Nominal channel frequency ±100 kHz

      RF signal power range: > –70 dBm

    • Carrier Frequency Drift (BR and LE), typical mean

    • Supported measurements: Max freq. offset, drift f1- f0, max drift fn-f0, max drift fn-fn-5(BR and LE 50 μs)

      Measurement uncertainty: <1 kHz3+ instrument frequency uncertainty

      Measurement resolution: 10 Hz

      Measurement range: Nominal channel frequency ±100 kHz

      RF signal power range: > –70 dBm

    • In-band emissions (ACPR) (BR and LE)

    • Level uncertainty: refer to instrument amplitude and flatness specification

1At nominal power level of 0 dBm

2At nominal power level of 0 dBm

3At nominal power level of 0 dBm

  • LTE Downlink RF measurements (SV28xx-SVPC)

    • Standard Supported

    • 3GPP TS 36.141 Version 12.5

    • Frame Format supported

    • FDD and TDD

    • Measurements and Displays Supported

    • Adjacent Channel Leakage Ratio (ACLR), Spectrum Emission Mask (SEM), Channel Power, Occupied Bandwidth, Power vs. Time showing Transmitter OFF power for TDD signals and LTE constellation diagram for Primary Synchronization Signal and Secondary Synchronization Signal with Cell ID, Group ID, Sector ID, RS (Reference Signal) Power and Frequency Error.

    • Channel power measurement accuracy

    • Level uncertainty: refer to instrument amplitude and flatness specification

  • Pulse measurements (SVPxx-SVPC)

    • Measurements (nominal)

    • Pulse-Ogram™ waterfall display of multiple segmented captures, with amplitude vs time and spectrum of each pulse. Pulse frequency, Delta Frequency, Average on power, Peak power, Average transmitted power, Pulse width, Rise time, Fall time, Repetition interval (seconds), Repetition interval (Hz), Duty factor (%), Duty factor (ratio), Ripple (dB), Ripple (%), Droop (dB), Droop (%), Overshoot (dB), Overshoot (%), Pulse- Ref Pulse frequency difference, Pulse- Ref Pulse phase difference, Pulse- Pulse frequency difference, Pulse- Pulse phase difference, RMS frequency error, Max frequency error, RMS phase error, Max phase error, Frequency deviation, Phase deviation, Impulse response (dB),Impulse response (time), Time stamp.

    • Pulse measurement characteristics

    • CharacteristicFor 40 MHz bandwidthFor 320 and 800 MHz bandwidth
      Minimum Pulse Width for detection, typical150 ns50 ns
      Average ON Power (at 18 to 28 °C), typical±0.4 dB + absolute Amplitude Accuracy For pulses of 300 ns width or greater, and signal levels above 70 dB below reference level.±0.4 dB + absolute Amplitude Accuracy For pulses of 100 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.
      Duty factor, typical±0.2% of reading For pulses of 450 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.±0.2% of reading For pulses of 150 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.
      Average transmitted power, typical±0.4 dB + absolute Amplitude Accuracy For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.±0.4 dB + absolute Amplitude Accuracy For pulses of 100 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.
      Peak pulse power, typical±0.4 dB + absolute Amplitude Accuracy For pulses of 300 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.±0.4 dB + absolute Amplitude Accuracy For pulses of 100 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.
      Pulse width, typical±0.25% of reading For pulses of 450 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.±0.25% of reading For pulses of 150 ns width or greater, duty cycles of .5 to .001, and S/N ratio ≥ 30 dB.

    • Pulse measurement characteristics (continued)

    • CharacteristicCenter frequency40 MHz bandwidth320 MHz bandwidth800 MHz bandwidth
      Pulse-to-pulse carrier phase (non-chirped pulse), typical2 GHz±0.4°±0.5°NA
      4 GHzNANA±0.5°
      10 GHz±0.4°±0.5°±0.5°
      20 GHz±0.4°±0.5°±0.5°
      Pulse-to-Pulse carrier phase (linear-chirped pulse), typical2 GHz±0.3°±0.5°NA
      4 GHzNANA±0.75°
      10 GHz±0.3°±0.5°±0.75°
      20 GHz±0.5°±0.5°±0.75°
      Pulse-to-Pulse carrier frequency (non-chirped pulse), typical2 GHz±40 kHz±400 kHzNA
      4 GHzNANA±800 kHz
      10 GHz±40 kHz±400 kHz±800 kHz
      20 GHa±40 kHz±400 kHz±800 kHz
      Pulse-to-Pulse carrier frequency (linear-chirped pulse), typical2 GHz±25 kHz±400 kHzNA
      4 GHzNANA±800 kHz
      10 GHz±25 kHz±400 kHz±800 kHz
      20 GHz±25 kHz±400 kHz±800 kHz
      Pulse-to-Pulse delta frequency (non-chirped pulse), typical2 GHz±1 kHz±20 kHzNA
      4 GHzNANA±60 kHz
      10 GHz±1 kHz±20 kHz±60 kHz
      20 GHz±5 kHz±25 kHz±75 kHz
      Pulse frequency linearity (Absolute Frequency Error RMS), typical2 GHz±10 kHz±100 kHzNA
      4 GHzNANA±200 kHz
      10 GHz±10 kHz±100 kHz±200 kHz
      20 GHz±10 kHz±100 kHz±200 kHz
      Chirp frequency linearity (Absolute Frequency Error RMS), typical2 GHz±10 kHz±150 kHzNA
      4 GHzNANA±300 kHz
      10 GHz±10 kHz±150 kHz±300 kHz
      20 GHz±10 kHz±150 kHz±300 kHz

  • AM/FM/PM measurement application (SVAxx-SVPC)

    • Carrier frequency range (analog demodulation)

    • (16 kHz or 1/2 × (audio analysis bandwidth) to maximum input frequency

    • Maximum audio frequency span (analog demodulation)

    • 10 MHz

    • Global conditions for audio measurements

    • Input frequency: <2 GHz

      RBW: Auto

      Averaging: Off

      Filters: Off

    • FM measurements (Mod. index >0.1)

    • Carrier Power, Carrier Frequency Error, Audio Frequency, Deviation (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

    • FM carrier power accuracy, typical mean

    • ±0.85 dB

      Carrier frequency: 10 MHz to 2 GHz

      Input power: -20 to 0 dB

    • FM carrier frequency accuracy, typical mean

    • ±0.5 Hz + (transmitter freq * reference freq error)

      Deviation: 1 to 10 kHz

    • FM deviation accuracy, typical mean

    • ± (1% of (rate + deviation) + 50 Hz)

      Rate: 1 kHz to 1 MHz

    • FM rate accuracy, typical mean

    • ±0.2 Hz

    • FM residual THD, typical mean


    • AM measurements

    • Carrier Power, Audio Frequency, Modulation Depth (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

    • PM measurements

    • Carrier Power, Carrier Frequency Error, Audio Frequency, Deviation (+Peak, -Peak, Peak-Peak/2, RMS), SINAD, Modulation Distortion, S/N, Total Harmonic Distortion, Total Non-harmonic Distortion, Hum and Noise

    • Audio filters

    • Low pass: 300 Hz, 3 kHz, 15 kHz, 30 kHz, 80 kHz, 300 kHz and user-entered up to 0.9*(audio bandwidth)

      High pass: 20 Hz, 50 Hz, 300 Hz, 400 Hz, and user-entered up to 0.9*(audio bandwidth)

      Standards-based: CCITT, C-Message

      De-emphasis (μs): 25, 50, 75, 750, and user-entered

      User defined audio file format: User-supplied .TXT or .CSV file of amplitude/frequency pairs. Maximum 1000 pairs

  • Mapping (MAPxx-SVPC)

    • Supported map types

    • Pitney Bowes MapInfo (*.mif), Bitmap (*.bmp), Open Street Maps (.osm)

    • Saved measurement results

    • Measurement data files (exported results)

    • Map file used for the measurements

    • Google Earth KMZ file

    • Recallable results files (trace and setup files)

    • MapInfo-compatible MIF/MID files

Environmental specifications

  • CTRL7100A I/O

  • PCIe 2x USB 3.0 on front panel

    2x USB 3.0 on rear panel

    2x USB 2.0 on rear panel

    17 removable drive bays (1 for OS, 16 for RAID)

    6 Mini-Display ports

    2x 10 Gbit Ethernet

    1x 40 Gbit Ethernet (Mellanox ConnectX-3 Ethernet Adapter) with QSFP connector type

  • CTRL7100A RAID

  • Disk size and lifetime, 800 MHz bandwidth

    RAID option

    Total time of all records

    Expected lifetime of disk

    Option B at 1000 MS/s55 min290 hr
    Option B at 1000 MS/s, stored unpacked40 min226 hr
    Option C at 1000 MS/s165 min900 hr
    Option C at 1000 MS/s, stored unpacked120 min680 hr

  • CTRL7100A internal characteristics

  • GPU: AMD W9100

    Dual Intel® Xeon® Processor E5-2623 v4 (10M Cache, 2.6 GHz)

    Clock 2.6 GHZ

    Internal Cache 10MB

    64GB DDR4 2133 MHz RAM

    Optional RAID controller and front-panel removable drives supports 4 GB/s streaming and up to 32 TB memory

    OS: Windows 7

RSA7100A interfaces, inputs, and output ports
